Central Fume Extractor Central Series Dust Purifier

6102
6103
6104
KSDC-8604A A1
KSDC-8604B
KSDC-8606B B1
KSDC-8609B B1
KSDC-8609B2
KSDC-8612B B1
KSDC-12004
KSDC-12006
KSDC-12009
KSDC-12012
KSDC-12016

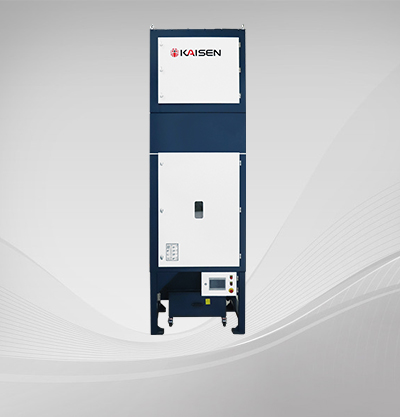

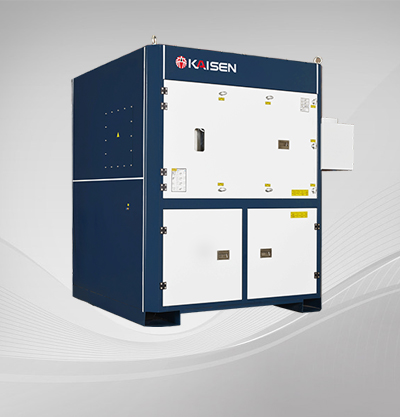

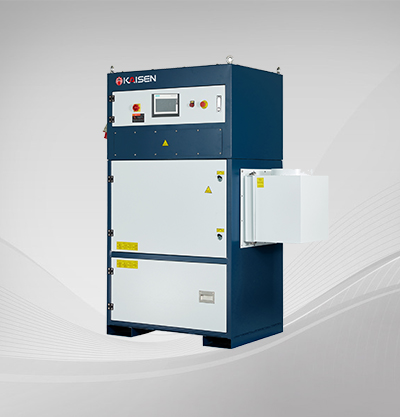

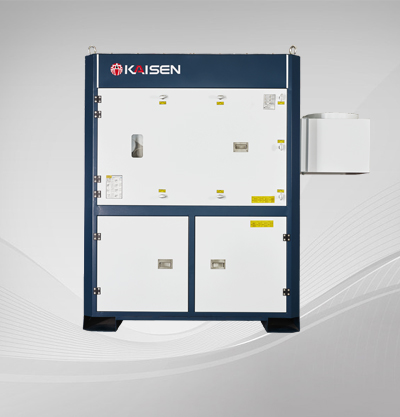

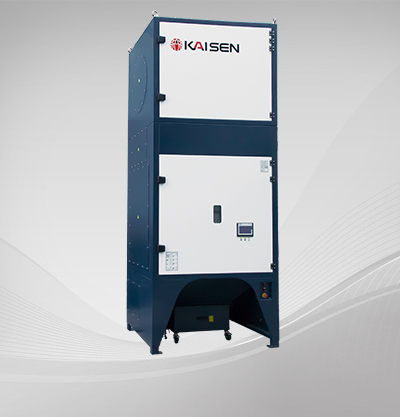

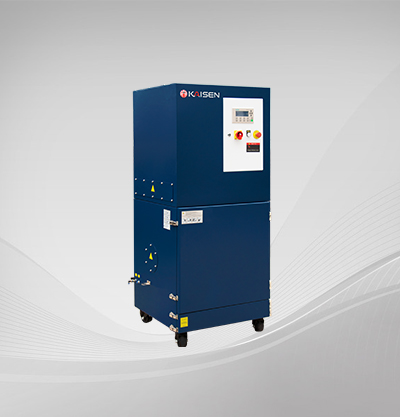

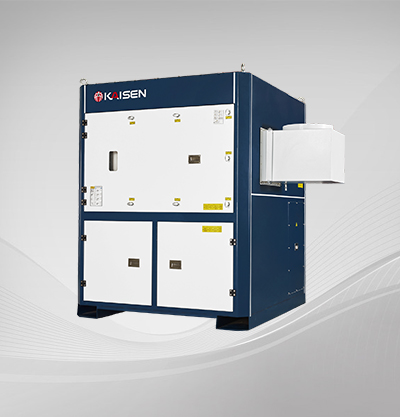

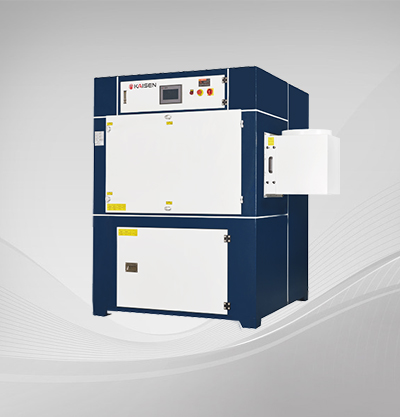

Central Fume Extractor

Central integrated unit structure design compact reasonable,not only has the advantage of high precision and high energy efficiency, can also be based on the actual operating conditions of intelligent frequency conversion, energy saving reliable.

應(yīng)用場景APPLICATION

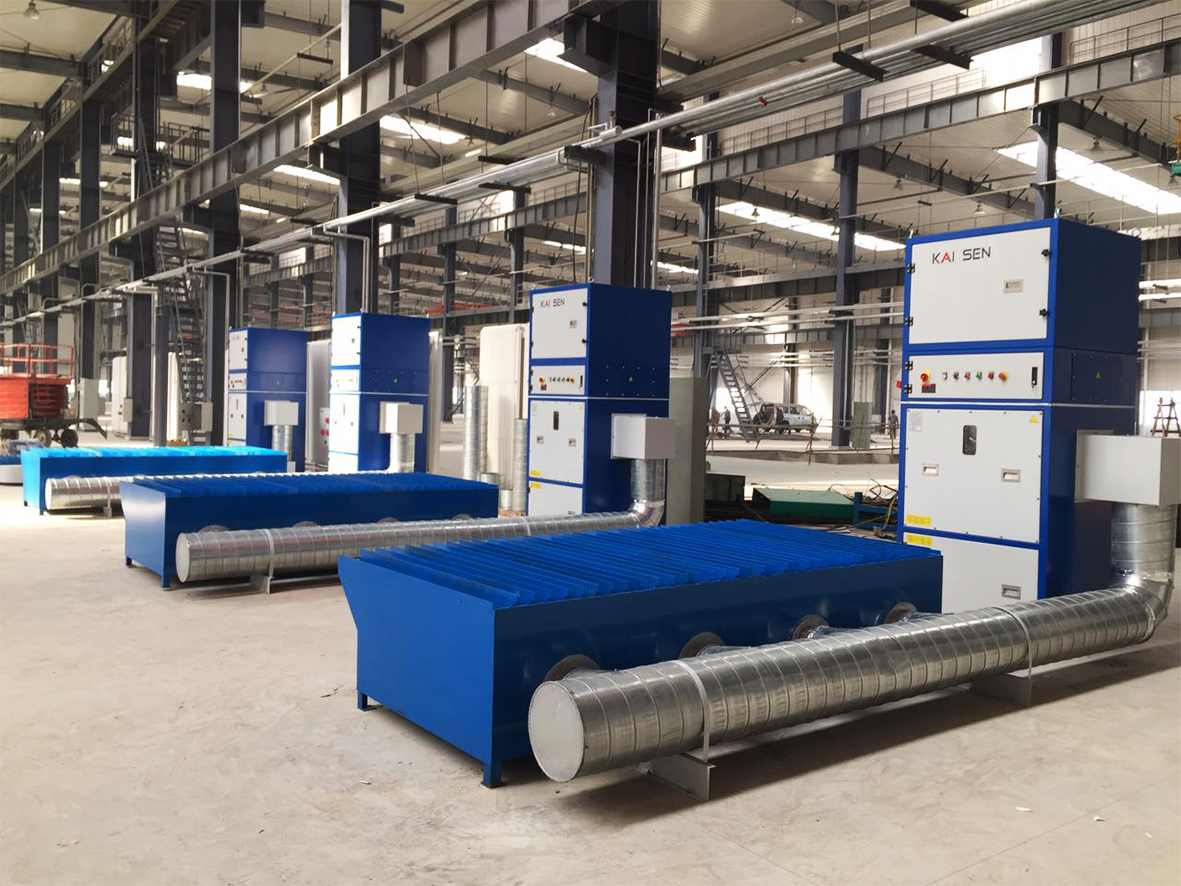

Application: Applicable for various welding, grinding workshop, welding center, robot welding line and plasma laser cutting blanking production line etc.

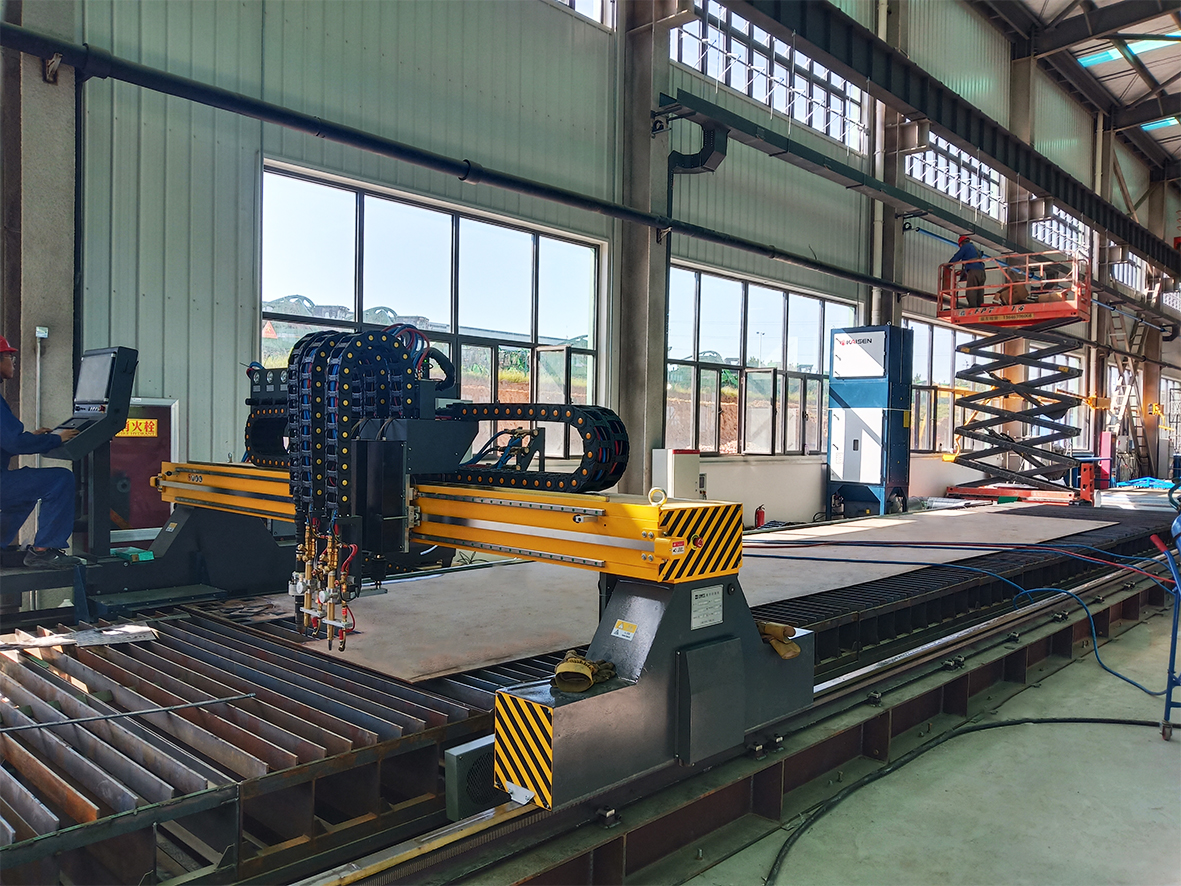

Plasma Cutting
Manual Cutting Station

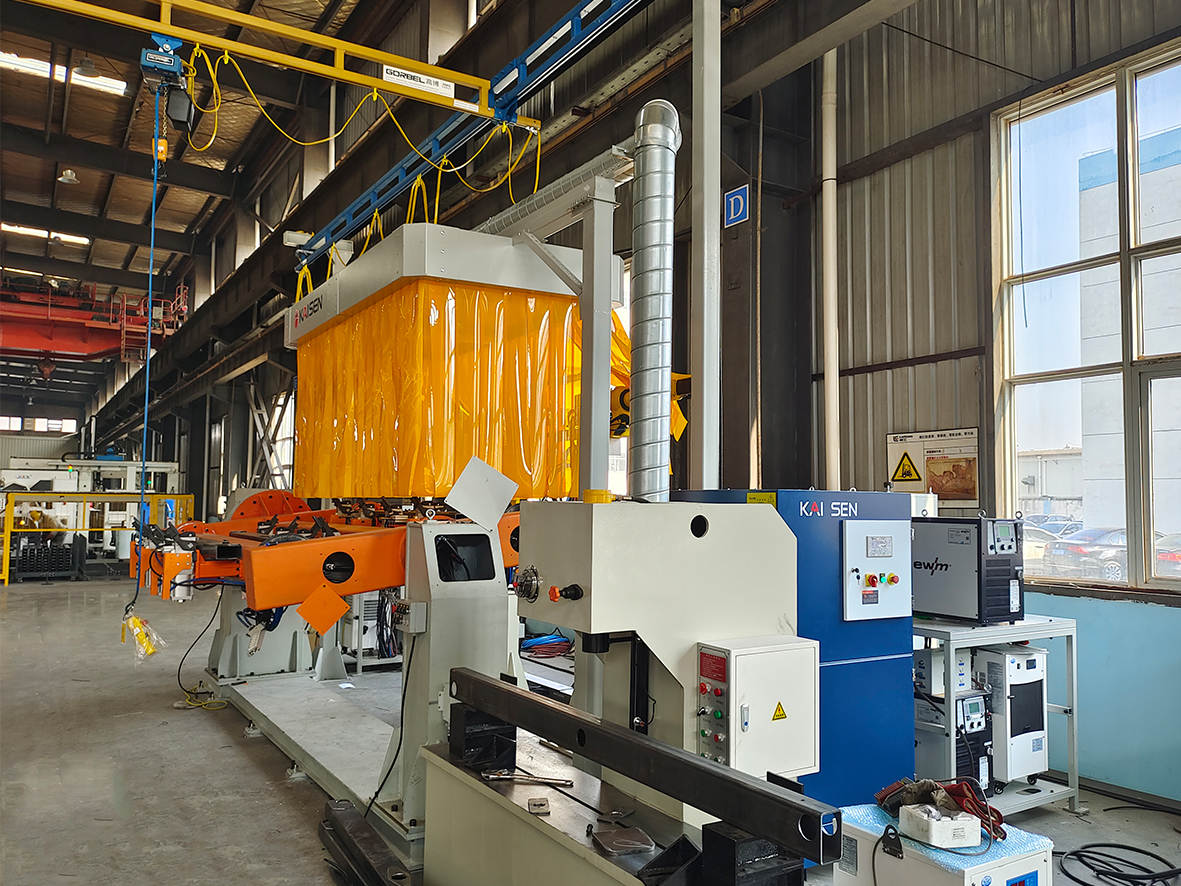

Robot Welding
Robot Welding

產(chǎn)品特性FEATURES




工作原理WORKING

Central Fume Extractor

During the purification system working, the dust enter the purification system through suction pipeline, the filter cartridge of the air inlet inside the purification system adopts stainless steel mesh sintered PTFE membrane filter material, which can intercept the large particles spark and flammable substances timely, which greatly improve the service life of the filter cartridge. Intercept and buffer the large particle dust that moves and splashes quickly with the airflow in the pipeline, then be separated directly and fall in to the dust collection bucket below.



Fine dust will slow down immediately after entering the purification system, and disperses the airflow with deflectors, which will avoid residual sparks and airflow enter the main filter cartridge; this product adopts international advanced PTFE membrane-coated filtration technology, with a high efficiency filtration, and keep a high air flow condition, when the wind resistance reaches a certain value and affecting the suction volume, the control system automatically opens the solenoid valve in turn, through the rotor type automatic rotating dust cleaning device in the filter cartridge, perform automatic blowback cleaning, which makes the dust removal on the surface of the filter cartridge more thorough and clean, always keep the dust collector with a constant suction volume. After the blowback cleaning, the dust fall into the dust collection bucket automatically.

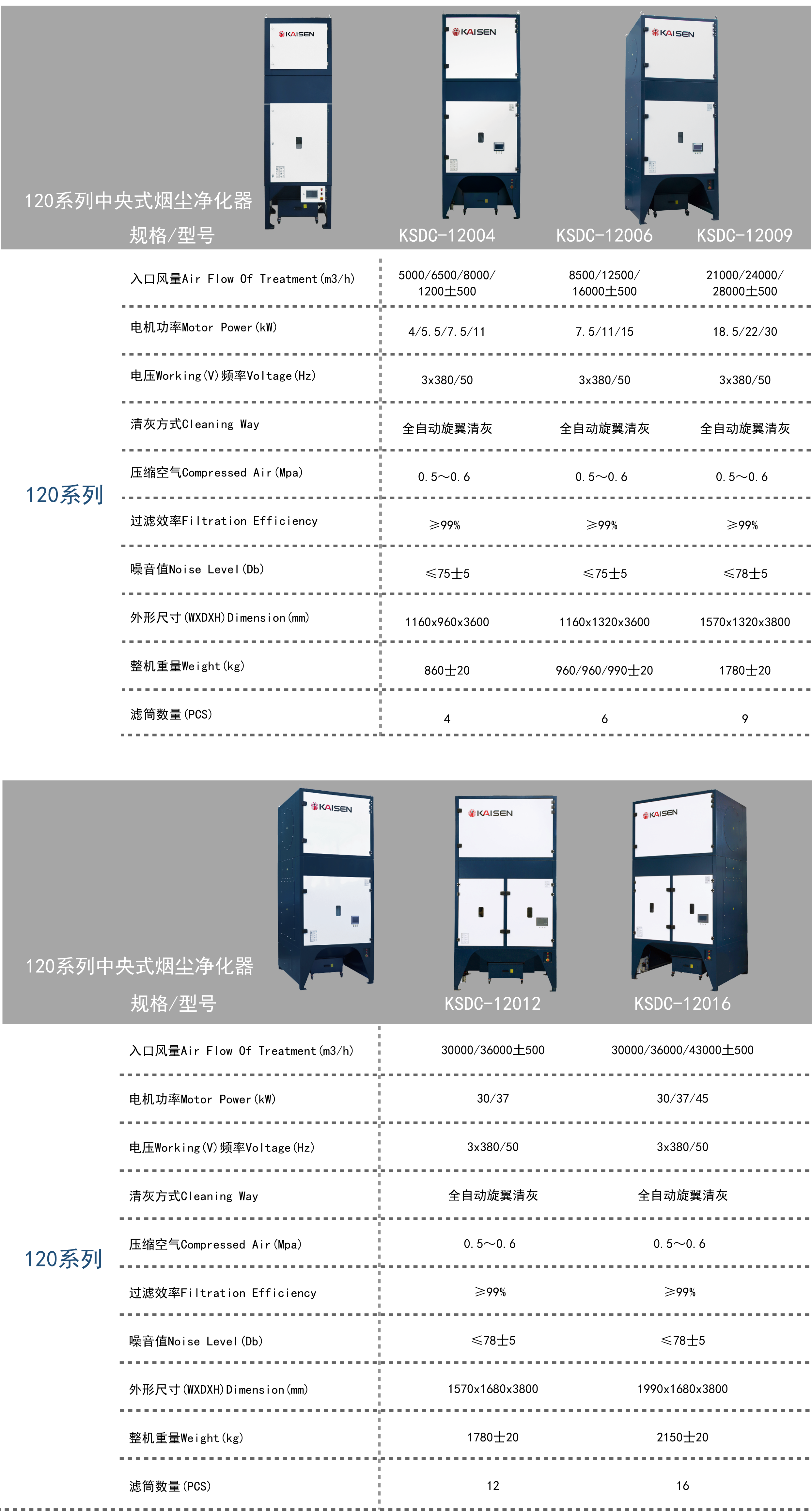

產(chǎn)品參數(shù)PRODUCT
